The smallest automatic lubricator
In confined spaces, the 15 ml simalube offers the perfect solution. With its compact size, it is unique on the global market as the smallest automatic lubricator. It functions the same as the larger simalube lubricators and offers the same advantages.
Small size delivers big performance
- Space-saving thanks to compact size
- Robust aluminium enclosure
- Same refill, installation and function as other simalube lubricators
- Alternative to the simalube multipoint when less than 5 lubrication points are needed
Specifications
| Code | D.SIMA.SL26-015 |
| Content | 15 ml |
| Lubricant | High performance grease |
| Applications | Ball bearing, slide bearing |
| Temperature-Range | -20 / +150°C |
| Base oil | MIneral oil |
| Thickener | Calcium (Ca) compl. |
| Power generation | Hydrogen gas (H2) producing dry cells |
| Working pressure | Max. 5 bar |
| Adjustment | Stepless 1–12 months |
| Ingress protection | IP68 (dustproof and waterproof) |
| Usage period | Within 2 years of filling date |
| Operating temperature | Suggested temperature 20°C ± 5°C |
| Screw thread outlet | 1/4" BSP |
| Dimensions | Ø 22 mm, length 70 mm |
| Weight in kg | 0.049 |
Sold millions of times and suitable for any single point lubrication task with grease or oil.
The automatic lubricator simalube provides all possible kinds of lubrication points with lubricant. 24 hours, day in, day out.

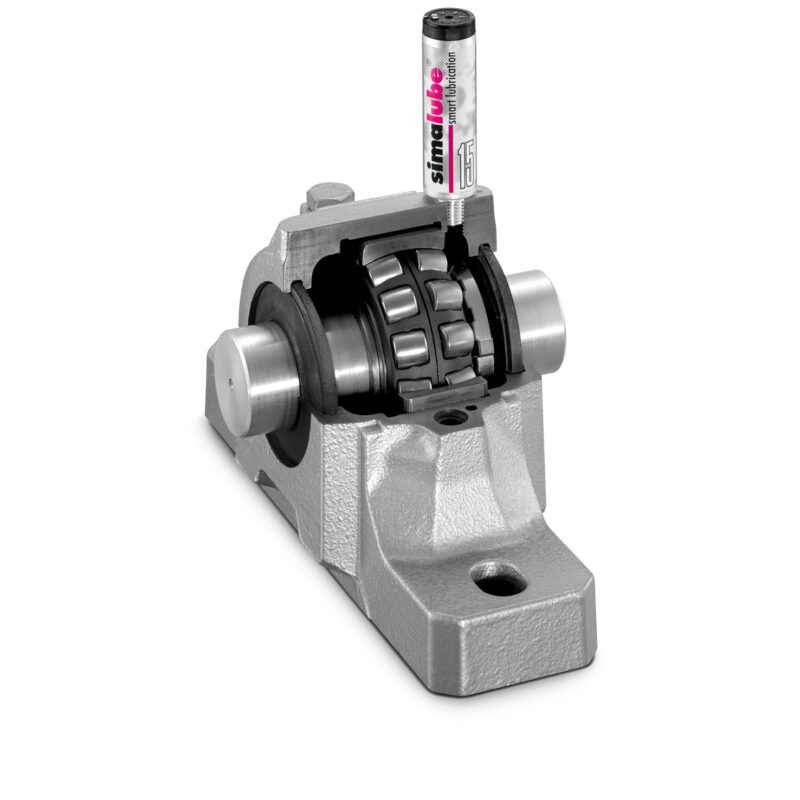

Roller bearings which are not lubricated sufficiently or wrongly drop out long before they have reached their expected product life. Simalube lubricators guarantee a consistent supply of lubricant in the pre-adjusted proportioning. Shutdown times are decreased and costs in comparison to time-consuming lubrication by hand are clearly reduced

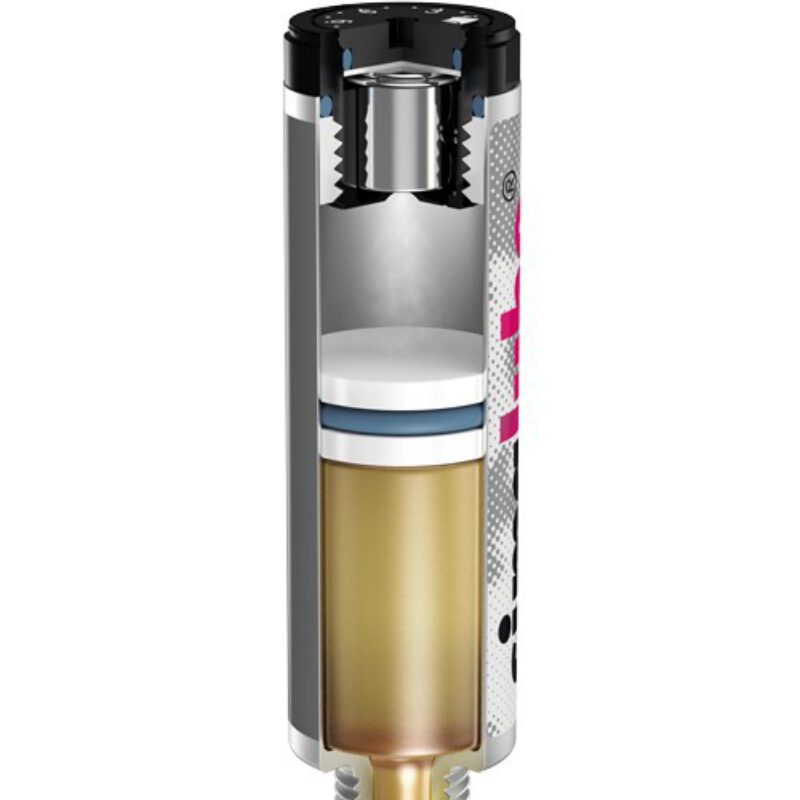

Within seconds simalube is fixed to the lubricating point. On commissioning, a gas production cell is activated which presses the lubricant on the lubrication point through the release of hydrogen gas. The lubrication amount can be steplessly adjusted by means of an Allen key.
Filled with oil, Simalube is applied for the automatic lubrication of chains, open gears or guide rails for example.
